Develivery time:25-35 days
Model: Aluzinc Tr5
Payment: 30% T/T deposit,70% balance before shipping
Warranty : 2 years for machinery warranty
Tags: roofing sheet manufacturing machine
Email: kerwin@hx-machinery.com
WhatsApp: +86 18322525408
Product Description
________________________________________________________________________________________
Cutting knife ,Brand: HX It uses a motor drive and automatic positioning to determine the desired size and cut the desired product.
Blade material: Cr12, quenching treatment
Feeding Table ，Brand: HX Passing raw material (steel plate) through the sand for manufacturing and processing ensures clean, parallel, and uniform products.
Note: Pre-cutting is manual.
Hydraulic Power Station ,Brand: Lichao, Shanghai Hydraulic Power Station: 4 kW

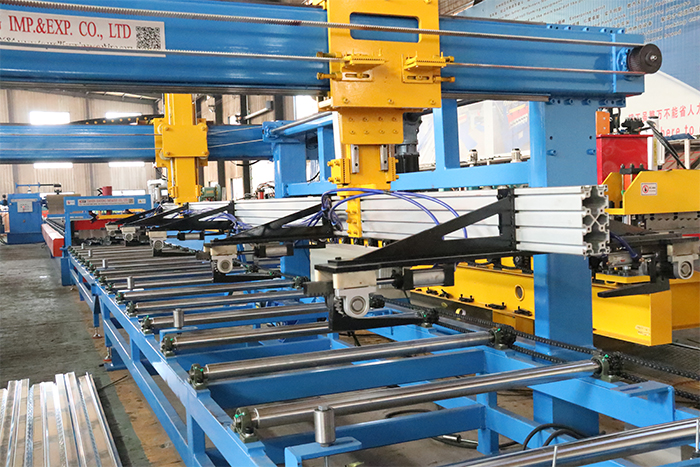

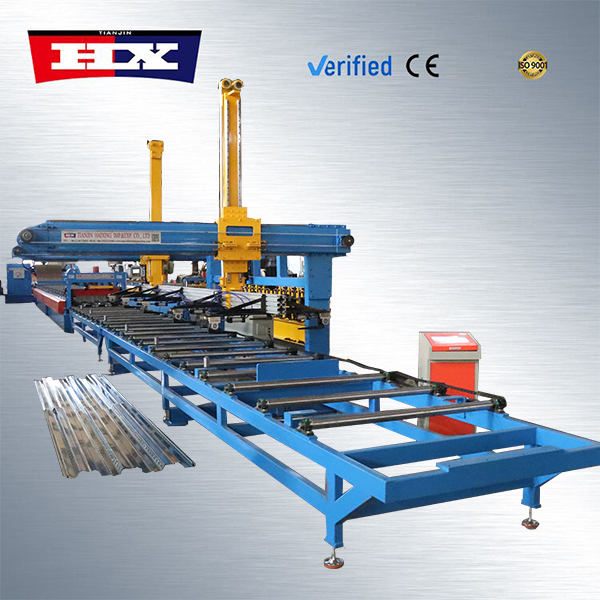

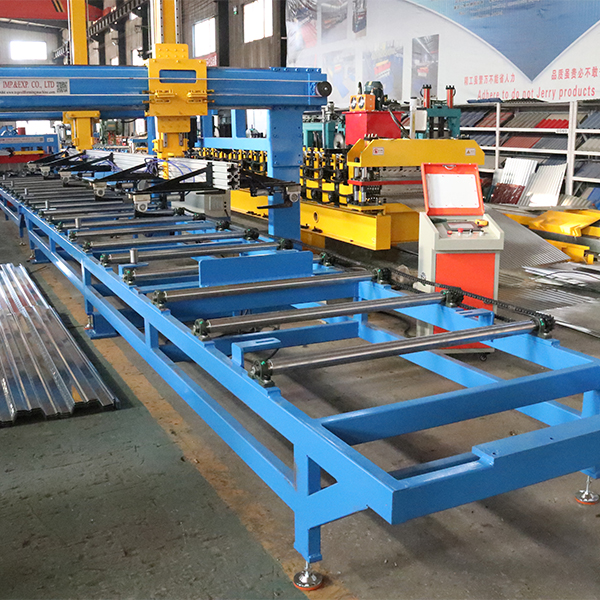

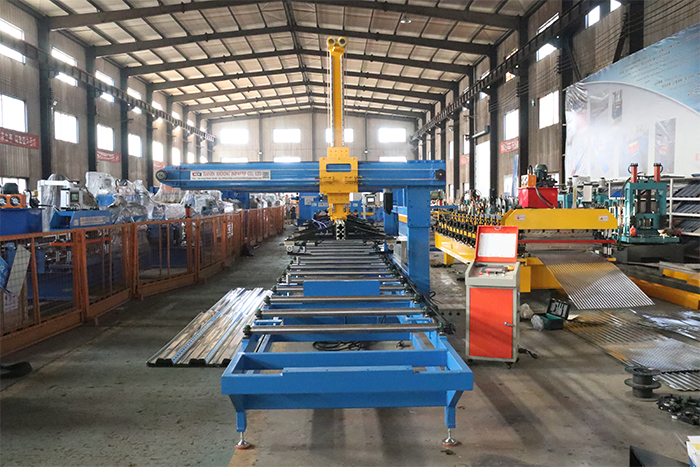

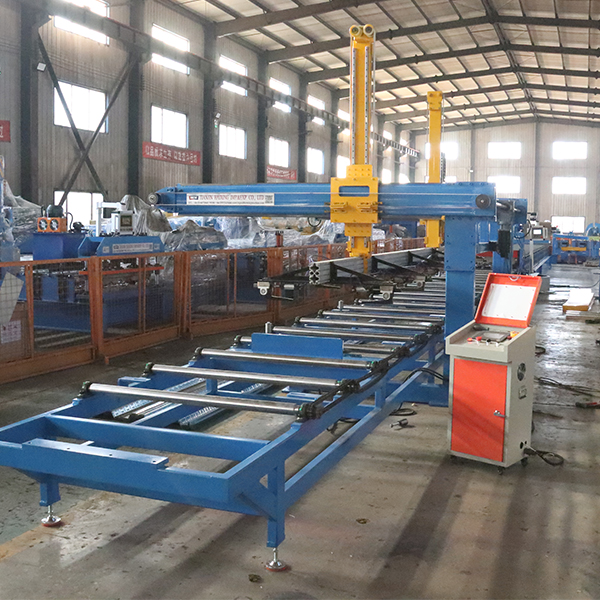

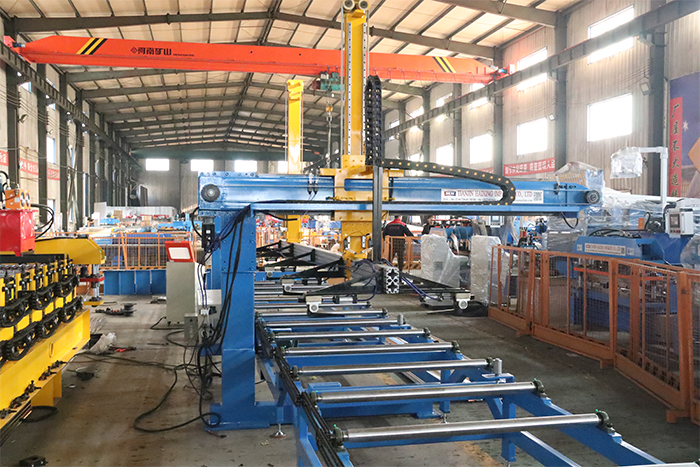

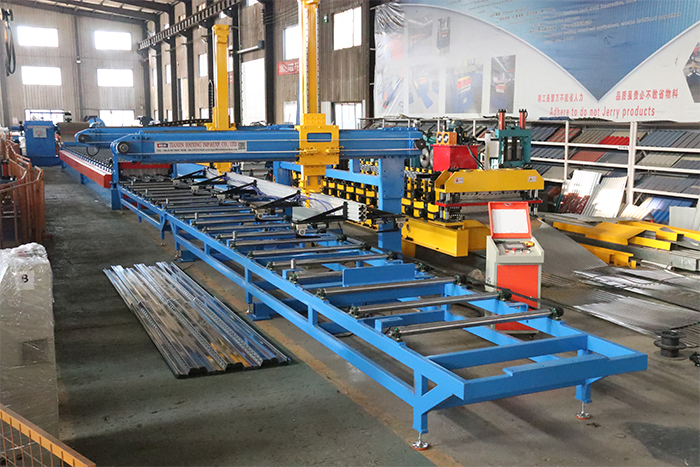

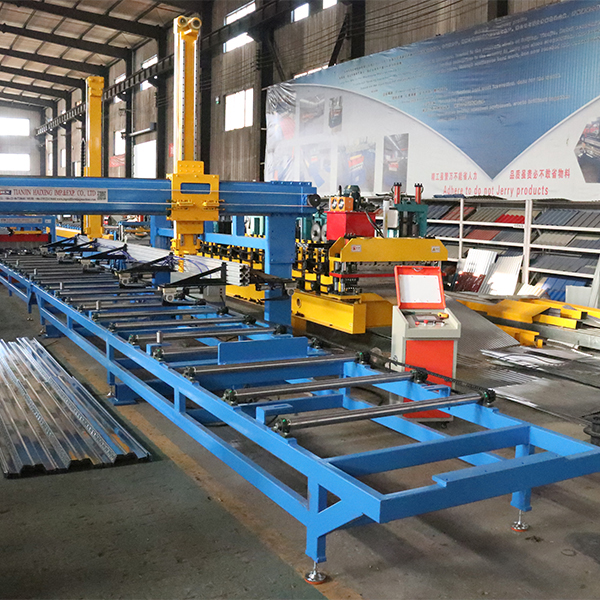

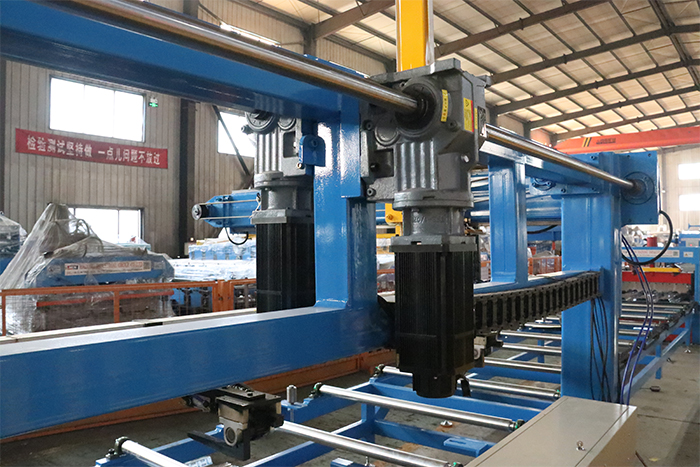

| Main Parameter of sheet stacker forming machine | ||
| 1 | length | Length 9 meters, width 937mm, thickness 1.2mm, load-bearing capacity 120KG |
| 2 | Palletizing cycle | 3 times/minute |
| 3 | Transmission power | 3kw motor |
| 4 | Rotation power | 1.8kw motor |
| 5 | Palletizing power | 3.8kw motor |
| 6 | Up and down travel | 1.1 meters |
| 7 | Left and right travel | 1.5 m |

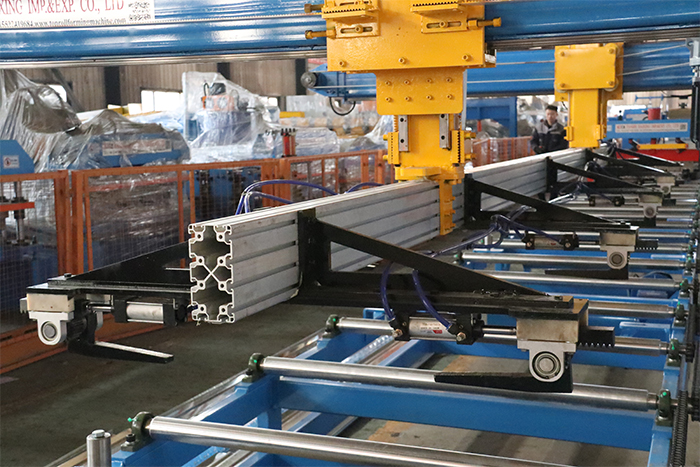

| 8 | Palletizing method | Robot handling |
| 9 | Length measurement method | Photoelectric sensor detection |
| 10 | Control method | Motion Controllers |
| 11 | How it works | Electrical components are Schneider brand + 7-inch touch screen |
| 12 | Production process | Frame, parts galvanized, painted, chrome plated, export standard |
| 13 | Voltage | 380V / 60Hz |
hydraulic decoiler machine Packing&Shipping
– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
– 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
– 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
After Sales Service of hydraulic decoiler machine
1. Warranty :Two years,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
Cooperation and Exchange
About Us
We, Tianjin Haixing is a professional cold roll forming machine manufacturer, We have been focusing on this field for 22 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, shutter door roll forming machine, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.
Our customers are all over the world, such as 65 countries in Germany, the United States, Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, Japan, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.
Looking forward to more cooperation with new and old friends from all over the world.
