Develivery time:25-35 days
Model: Aluzinc Tr5
Payment: 30% T/T deposit,70% balance before shipping
Warranty : 2 years for machinery warranty
Tags: roofing sheet manufacturing machine
Product Description
________________________________________________________________________________________
Cutting knife ,Brand: HX It uses a motor drive and automatic positioning to determine the desired size and cut the desired product.
Blade material: Cr12, quenching treatment
Feeding Table ，Brand: HX Passing raw material (steel plate) through the sand for manufacturing and processing ensures clean, parallel, and uniform products.
Note: Pre-cutting is manual.
Hydraulic Power Station ,Brand: Lichao, Shanghai Hydraulic Power Station: 4 kW

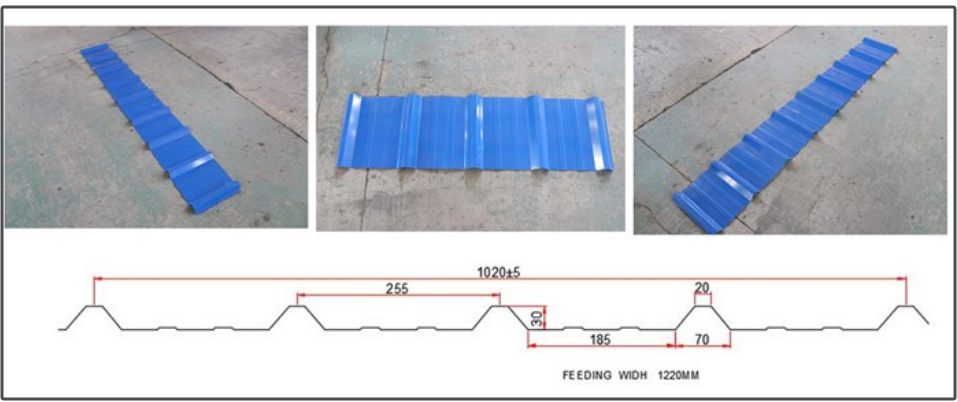

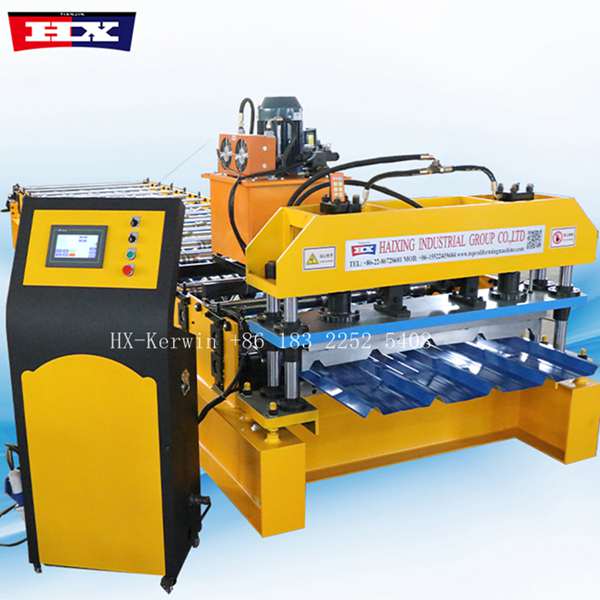

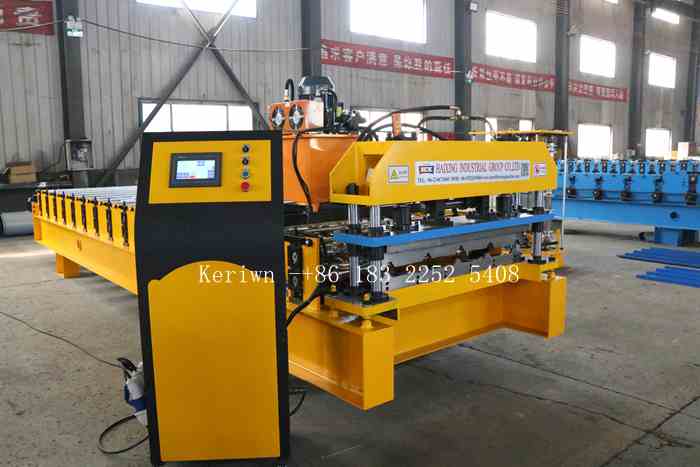

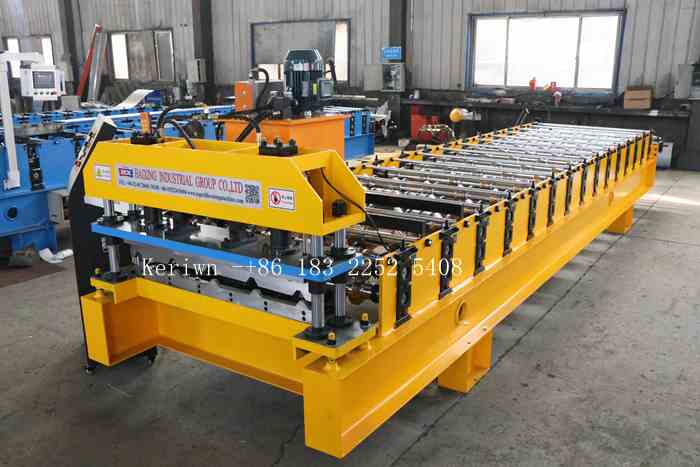

| TR5 roof sheet roll forming machine parameter | ||||
| 1 | Suitable to process | Color alu-zinc steel coil 1220mm width | ||

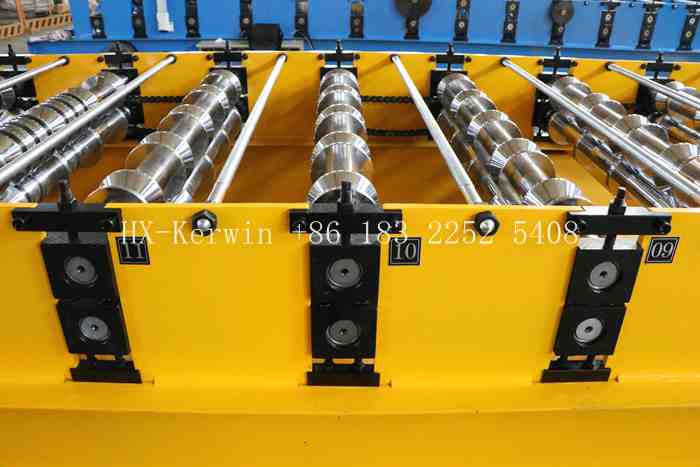

| 2 | Rollers | 15 rollers | ||
| 3 | Dimensions | 7200*1800*1750mm | ||
| 4 | Motor Power | 5.5KW | ||
| 5 | Pump Station Motor | 4KW | ||
| 6 | Thickness of the plate | 0.3mm-0.8mm | ||
| 7 | Productivity | 10-15m/min | ||
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58℃-60℃ | ||
| 9 | Diameter of the roller | Φ70mm | ||
| 10 | Weight | 4.8Tons | ||
| 11 | Main structure of the machine | 350 H steel | ||
| 12 | Processing precision | Within 1.0mm | ||
| 13 | Side panel of machine | 16mm | ||
| 14 | Chain Wheel and Cycle Chain | 1 Inch | ||
| 15 | Voltage | 380V 60Hz 3phases or customer’s need | ||
| 16 | Control system | PLC control (Delta) | ||
| 17 | Frequency system | Delta | ||
| 18 | Drive mode | Motor drive | ||
| 19 | Touch screen | Delta | ||
| 20 | Rolling materials | 45# forging steel with chromium plate | ||
| 21 | Length Tolerance | ±2mm | ||

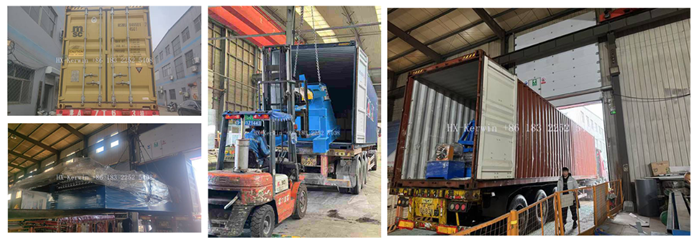

TR5 roof sheet roll forming machine Packing&Shipping
– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
– 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
– 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
After Sales Service of TR5 roof sheet roll forming machine
1. Warranty :Two years,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
