Model: Aluzinc Tr5
Payment: 30% T/T deposit,70% balance before shipping
Warranty : 2 years for machinery warranty
Tags: roofing sheet manufacturing machine
Email: kerwin@hx-machinery.com
WhatsApp: +86 18322525408
Product Description
________________________________________________________________________________________
Cutting knife ,Brand: HX It uses a motor drive and automatic positioning to determine the desired size and cut the desired product.
Blade material: Cr12, quenching treatment
Feeding Table ，Brand: HX Passing raw material (steel plate) through the sand for manufacturing and processing ensures clean, parallel, and uniform products.
Note: Pre-cutting is manual.

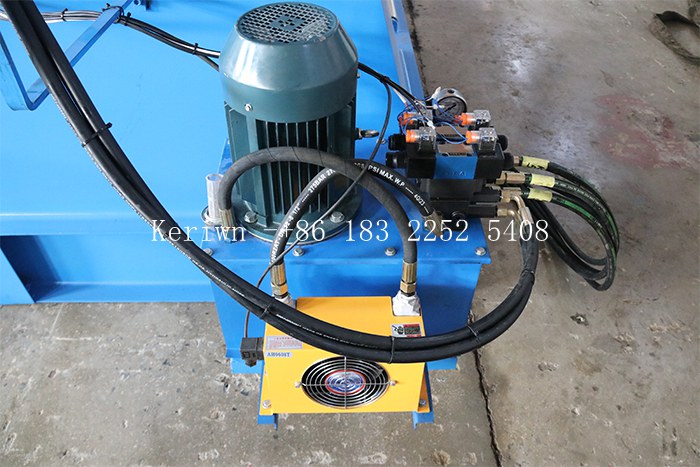

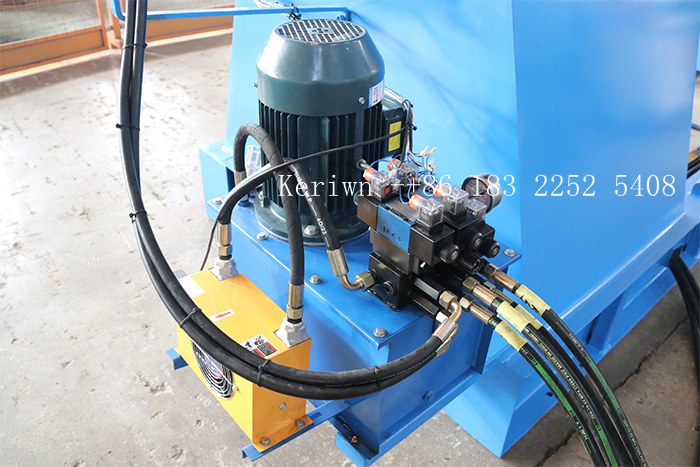

Hydraulic Power Station ,Brand: Lichao, Shanghai Hydraulic Power Station: 4 kW

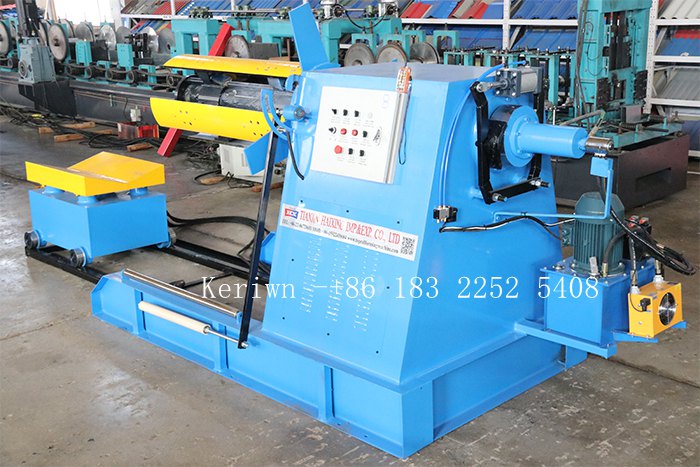

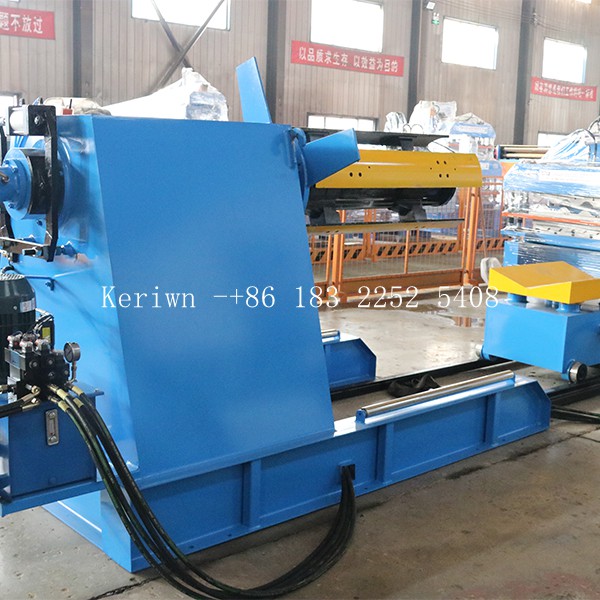

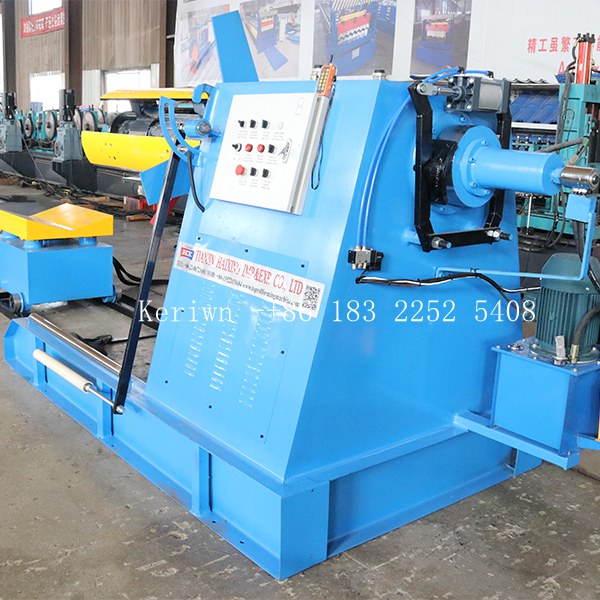

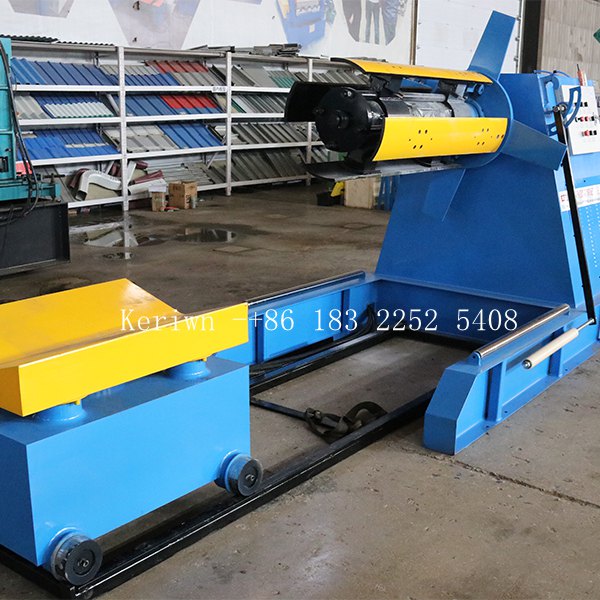

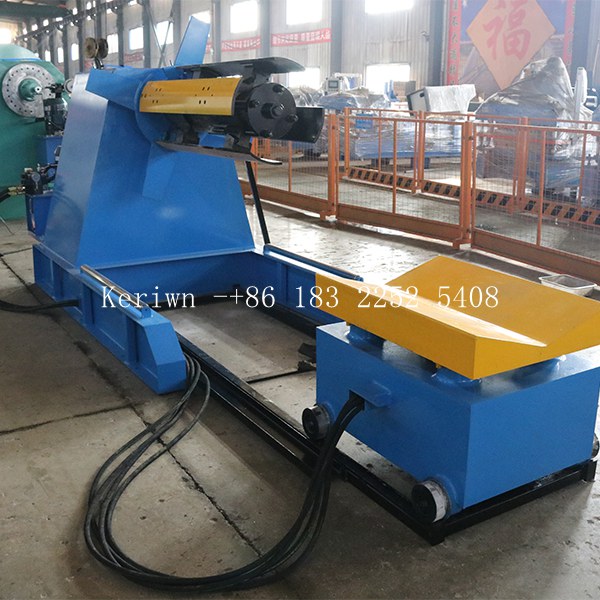

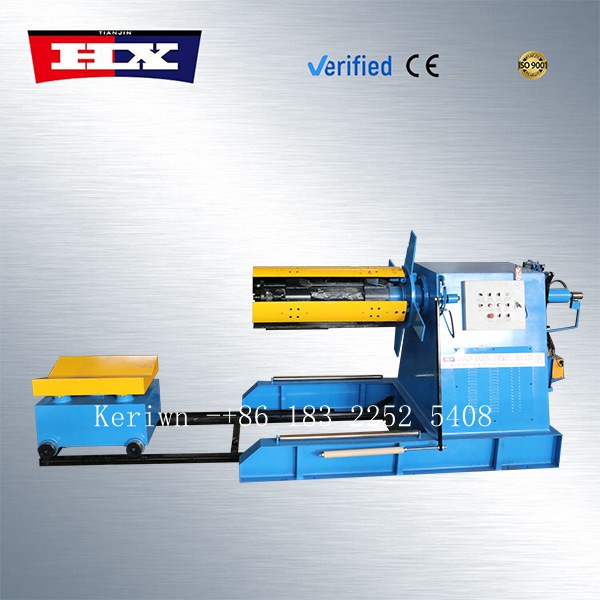

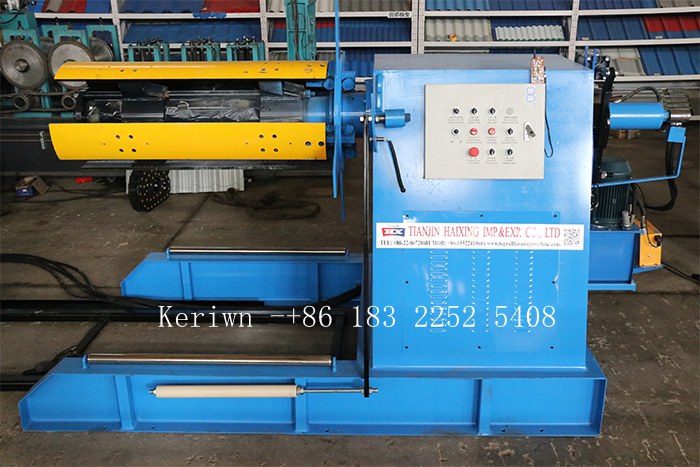

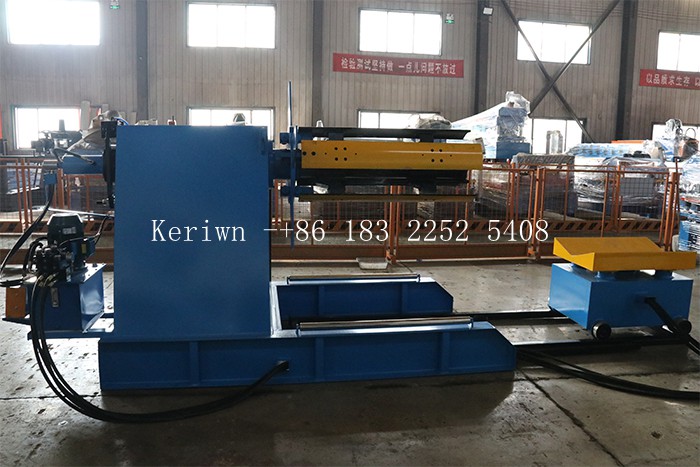

| Main Parameter of hydraulic decoiler machine | ||
| 1 | size | 2700x1600x1750mm |
| 2 | Weight | 3.2TON |
| 3 | Hydraulic Cylinder | 1x125mm |
| 4 | Rated load | Within 5 tons |
| 5 | Base material | The base is made of 300H national standard I-beam, and the box is welded with 16mm thick steel plate. |
| 6 | Steel coil inner diameter | 470-530mm，±20mm |
| 7 | Coil width | 0-1300mm |
| 8 | Support spindle | Made of thick-walled seamless steel pipe, shaft diameter 194*45mm |
| 9 | Reducer | Steel shell reducer (speed ratio: 40:17) 4KW Shanghai Lichao |
| 10 | Main motor power (brand) | PM250 |
| 11 | Pump motor power (brand) | 4KW three-valve hydraulic pump station with pressure maintenance (Lichao), Taiwan Delta inverter (5.5kw) pump station with small fan - pump station blue |
| 12 | Control cabinet | Taiwan Delta electric control box (operating language: Chinese, English and German) |
| 13 | Voltage | 380V 50HZ 3phase |

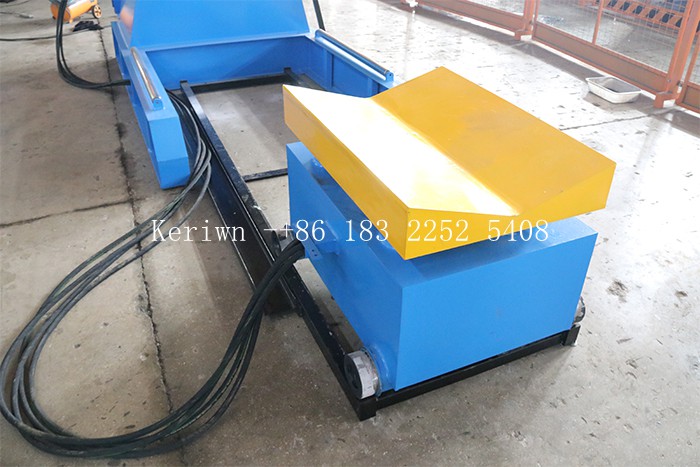

| Hydraulic guide column trolley | length | One trolley track is 6.5 meters and the other is 9 meters |
| Trolley lifting | Double cylinder, bore 90mm, stroke 240mm | |
| Car movingforward | Model 450, hydraulic motor | |
| Cart unloading | Panel length: 1.25m, Panel width: 1.1m | |
| Trolley track | Width: 1050mm, Length: 2.5m | |
| Trolley travel | Height travel: 400mm, length travel: 2.5 meters | |
| Trolley weight | 0.9TON | |
hydraulic decoiler machine Packing&Shipping
– 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
– 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
– 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
– 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
After Sales Service of hydraulic decoiler machine
1. Warranty :Two years,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
